PROFESSIONAL LED STRIP MANUFACTURER
COB LED Strip
- Fully automated production, fast delivery time.
- LM90 compatible LEDs, lifetime up to 50,000 hours.
- 5 years warranty.
- Professional R&D team, support customization, ODM, OEM.
- Free samples are provided.
- Quick response to any of your inquiries.
COB LED Strip Supplier & Manufacturer
MSHLED Lighting is a professional manufacturer of COB LED Strips based in China. We offer customized solutions, along with OEM and ODM services. Wholesalers, distributors, dealers, traders, and agents are welcome to purchase in bulk and build long-term partnerships with us.
Thank you for reading this post, don't forget to subscribe!All of our COB LED Tape Lights are CE, RoHS, and LM80 certified, ensuring high performance, reliability, and long lifespan.
If you require customized solutions for Red, RGB, or RGBW COB LED Strip Lights in bulk, MSHLED can provide tailored COB LED strips to your specific needs. We offer customizations in color, size, length, CRI (Color Rendering Index), and a variety of accessories.
What is COB (Chip-on-Board) Technology?
COB (Chip-on-Board) is a modern LED technology where multiple LED chips are directly mounted on a single PCB (Printed Circuit Board), creating a compact, high-density lighting source. Unlike traditional SMD (Surface-Mounted Diode) LEDs, COB LEDs are designed to eliminate visible gaps between the individual LEDs, providing a seamless, continuous light output. This makes them ideal for applications where smooth, uniform illumination is desired without visible “dots.”
COB LED strips are designed to offer a more efficient, high-brightness light source while maintaining a compact and flexible form factor. These strips can be used in a wide variety of applications, from ambient lighting to decorative accents, and they are available in both RGB and RGBW versions for dynamic color control.
COB LED strip VS SMD LED strip
COB LED Strips are best for uniform, high-brightness, and energy-efficient lighting with excellent heat dissipation. They are ideal for professional, architectural, and high-performance applications.
SMD LED Strips offer flexibility, wide customization options, and are great for general lighting where visible LEDs or specific brightness control is needed.
Benefits of COB LED Strip Lights
Dotless
COB technology eliminates the visible gaps between LEDs, providing a continuous strip of light that’s smooth and uniform.
High Brightness
With their compact design, COB LEDs are incredibly efficient and offer high brightness, making them ideal for both ambient and task lighting.
Energy Efficient
COB LEDs consume less power than traditional light sources while delivering exceptional light output.
Flexible Design
The strips can be easily cut and installed in custom lengths, offering flexibility for different projects and applications.
Long Lifespan
COB LEDs are known for their long life expectancy, ensuring that your lighting stays vibrant for years with minimal maintenance.
Wide Color Options
Available in RGB and RGBW, COB LED strips provide full-color control, enabling you to create dynamic, color-changing effects and even pure white light when needed.
Applications of COB LED Strips
Perfect for creating sleek, modern lighting effects in homes, offices, and public spaces.
Use the vibrant colors and smooth lighting effects to enhance signage, logos, and retail displays.
COB strips provide even, bright light for kitchen counters, shelves, and display cases.

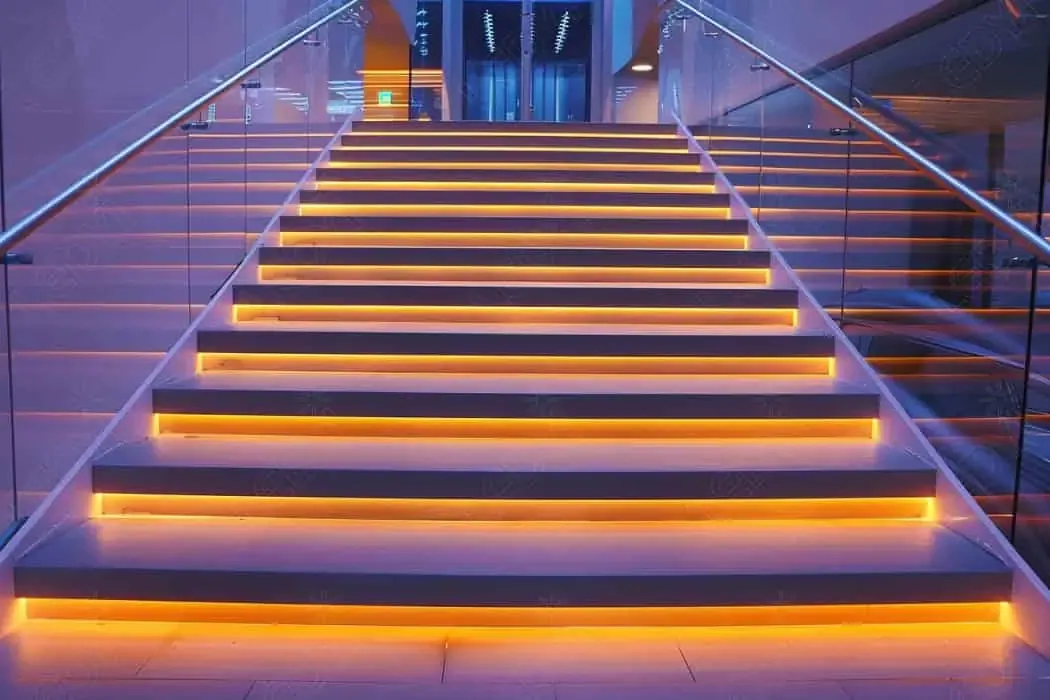

Whether it’s for creating mood lighting or highlighting design elements, COB LED strips add beauty and style to any space.
Ideal for producing stunning lighting effects in live events, theaters, and parties.
How To Produce COB LED Strip
Expanding Chips: The first step is to prepare and expand the LED chips that will be used in the COB (Chip on Board) LED strips.
Die Bonding: The chips are then bonded to a flexible PCB (Printed Circuit Board) using specialized equipment.
Attaching Resistors onto FPCB: Resistors are placed onto the flexible PCB to ensure the correct current flow for each LED.
Reflow Process: The PCB with the attached chips and resistors is subjected to a high-temperature reflow process (typically over 65°C), ensuring proper soldering of components.
Fluorescent Powder Glue Mixing: A fluorescent powder is mixed into the glue that will be applied to the LED chips. This is to ensure the correct color temperature and brightness.
Applying Glue: An automatic glue machine is used to apply the mixed glue onto the surface of the chips and resistors.
Oven Curing: The COB LED strips are placed into an oven to cure the glue and allow it to set, creating a smooth coating over the chips.
Quality Control Testing: After cooling, each COB LED strip undergoes a quality control test to ensure the correct performance and light output.
Soldering to Length: The COB LED strips are then soldered into standard lengths, typically 5 meters per reel, or custom lengths as requested by the customer.
Aging Test, QC, Packing, and Shipping: Finally, the LED strips undergo an aging test to ensure longevity, followed by further quality control checks, packing, and shipping to the customer.

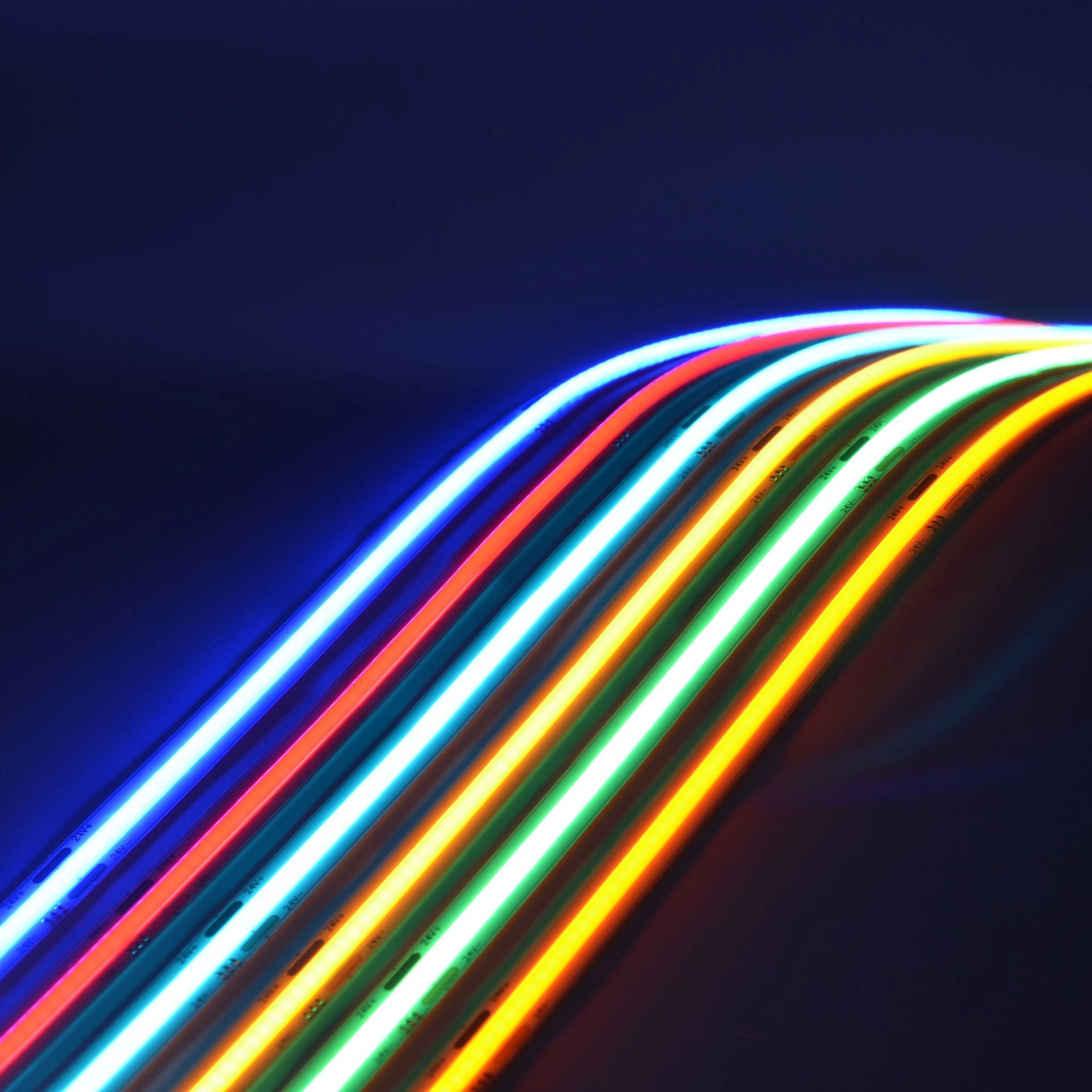

COB Dotless LED Strip
The Mono COB LED Strip is a high-quality lighting solution that offers a wide range of colors and options for various applications. It features dotless technology, providing a smooth and continuous light without visible spots, making it ideal for both decorative and functional lighting purposes.
Key Features:

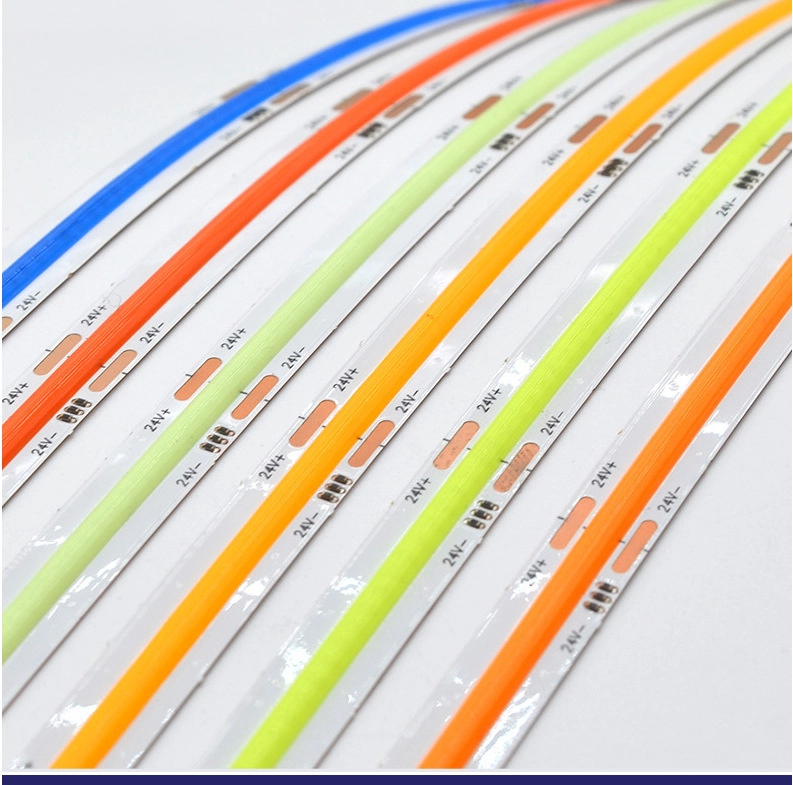

Color Options: Available in white, red, green, blue, yellow, orange, Tiffany blue, Mars green, pink, and more.

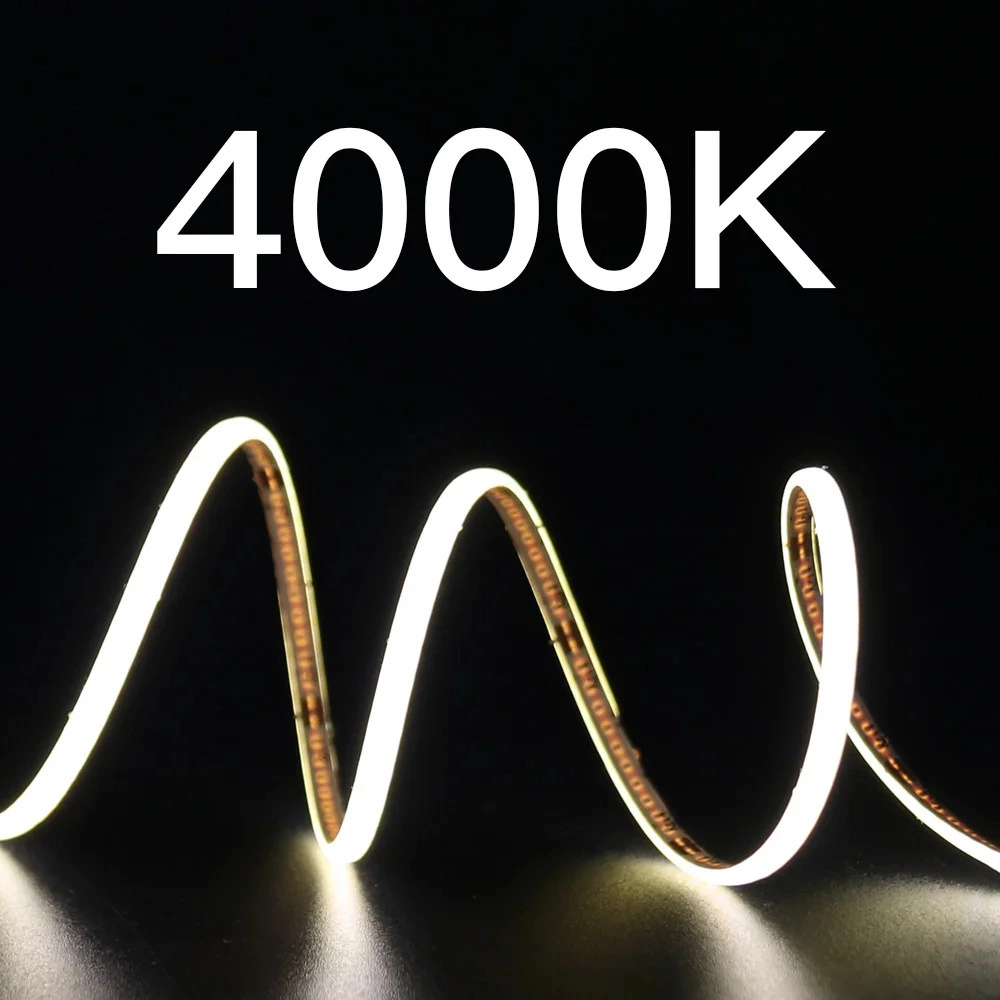

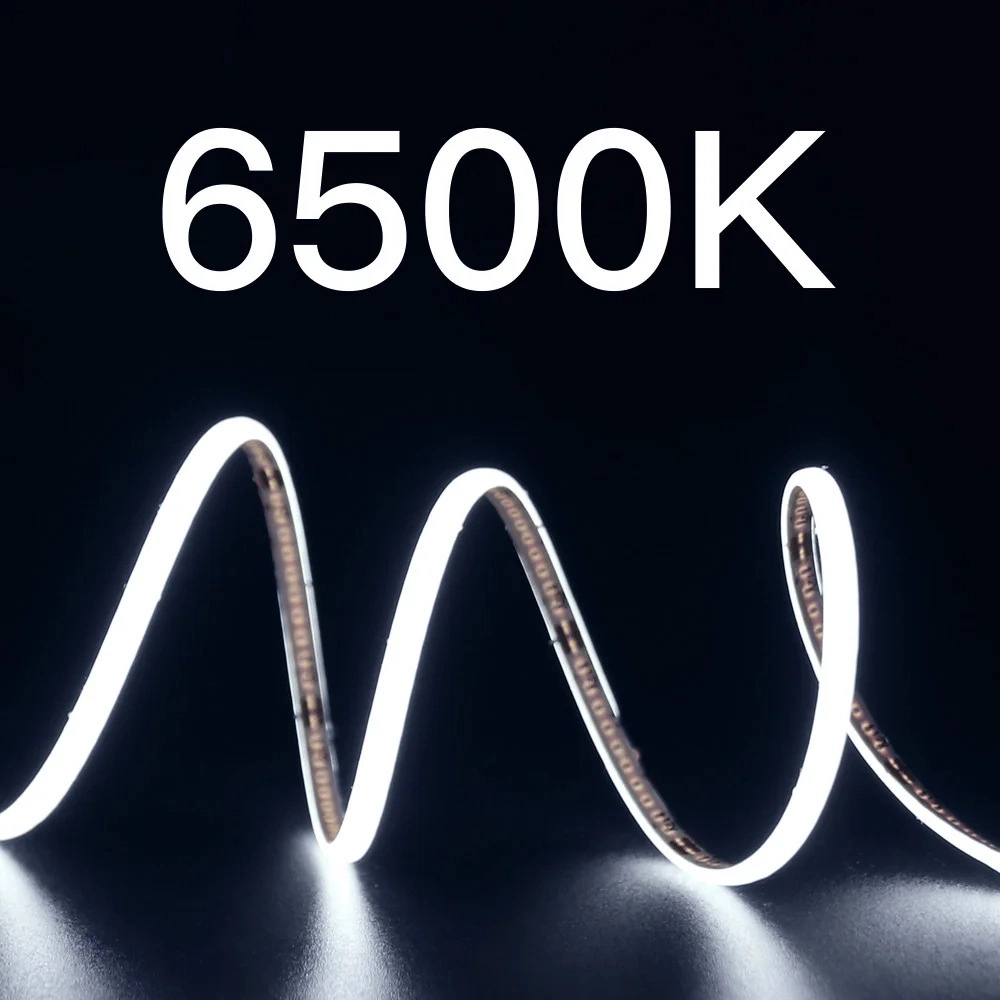

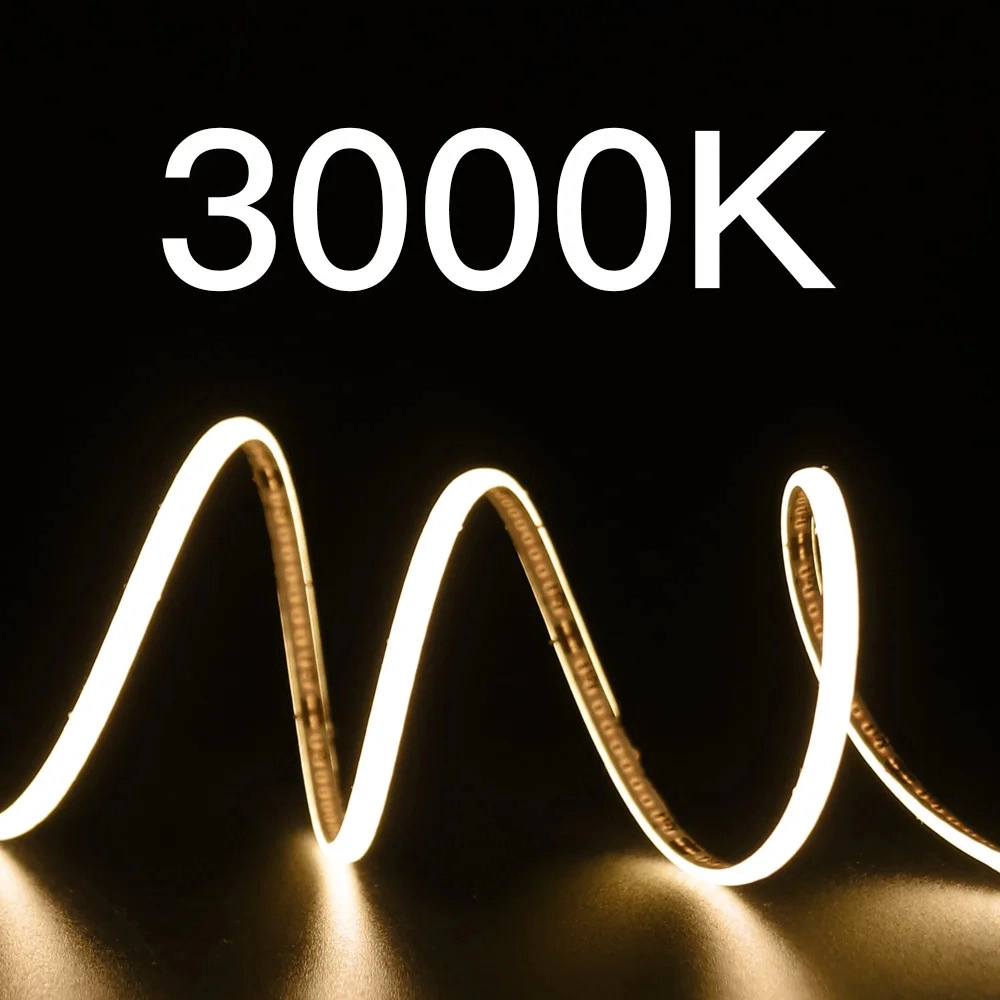

White Light Color Temperature: 2700K, 3000K, 4000K, and 6500K, providing a range of warm to cool lighting options.
Color Rendering Index (CRI): Greater than 90, ensuring accurate and vibrant color reproduction.
PCB Width Options: 4mm, 8mm, and 10mm available to fit different installation requirements.
Chip Density: 480 chips per meter, delivering bright and uniform light distribution.
This dotless COB LED strip is perfect for applications where a sleek, smooth lighting effect is desired, such as in retail displays, backlighting, signage, and architectural lighting. It is available in customizable lengths and can be used for both indoor and outdoor installations.
Tunable White COB Dotless LED Strip
The Tunable White COB LED Strip (also known as CCT adjustable COB LED strip) offers an advanced solution for dynamic lighting needs. It features up to 576 chips per meter, providing a smooth, continuous light with no visible spots. With a Tunable White LED Controller, you can effortlessly adjust the color temperature from 2700K to 6500K, allowing you to customize the lighting for different moods and settings.
Key Features:
Tunable White: Adjust the color temperature from warm white (2700K) to cool white (6500K) to suit various environments and preferences.
Chip Density: Up to 576 chips per meter, ensuring bright and even illumination without light spots.
PCB Options:
3-wire, 10mm width PCB for standard installations.
2-wire, 8mm width PCB for more compact spaces or custom setups.
This Tunable White COB LED Strip is ideal for applications such as residential lighting, office spaces, hospitality environments, and any other setting where adjustable lighting is required for different times of the day or specific tasks. It provides flexibility in both installation and color temperature adjustment, making it a versatile lighting choice.

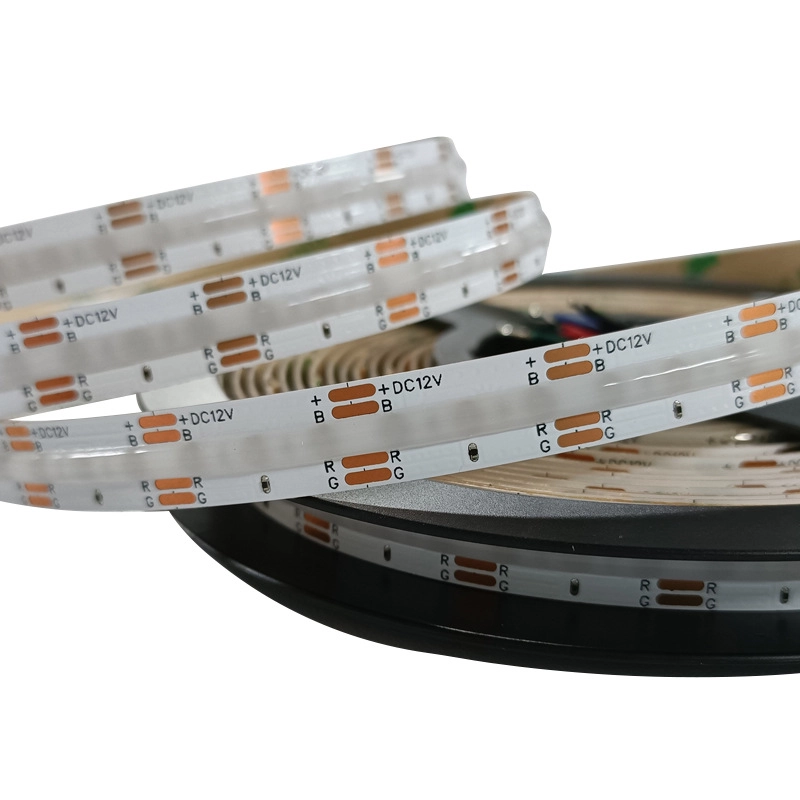

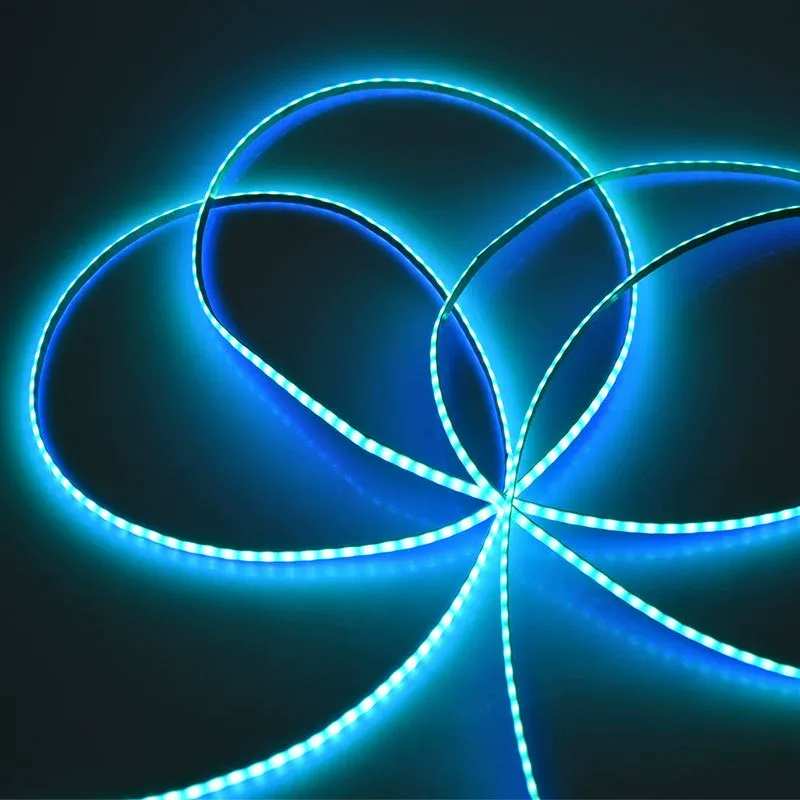

RGB COB Dotless LED Strip
The RGB COB LED Strip is designed for vibrant, dynamic lighting with high-density LED chips—up to 1134 chips per meter, ensuring smooth, uniform lighting with no visible dots. This strip offers full RGB color control, allowing you to create stunning lighting effects and change colors in a variety of ways with the use of an RGB LED controller.
Key Features:
High Chip Density: Up to 1134 chips per meter for bright, continuous illumination without any light spots.
Full RGB Color Control: Adjust the color of the strip to any combination of Red, Green, and Blue for dynamic lighting effects.
Smooth Lighting: COB (Chip-on-Board) technology ensures a seamless light output, perfect for decorative or functional lighting.
This RGB COB Dotless LED Strip is perfect for creating eye-catching displays, accent lighting, or vibrant color-changing effects in areas such as home décor, signage, event lighting, and more. It is ideal for both indoor and outdoor applications, providing flexibility and creativity in lighting design.

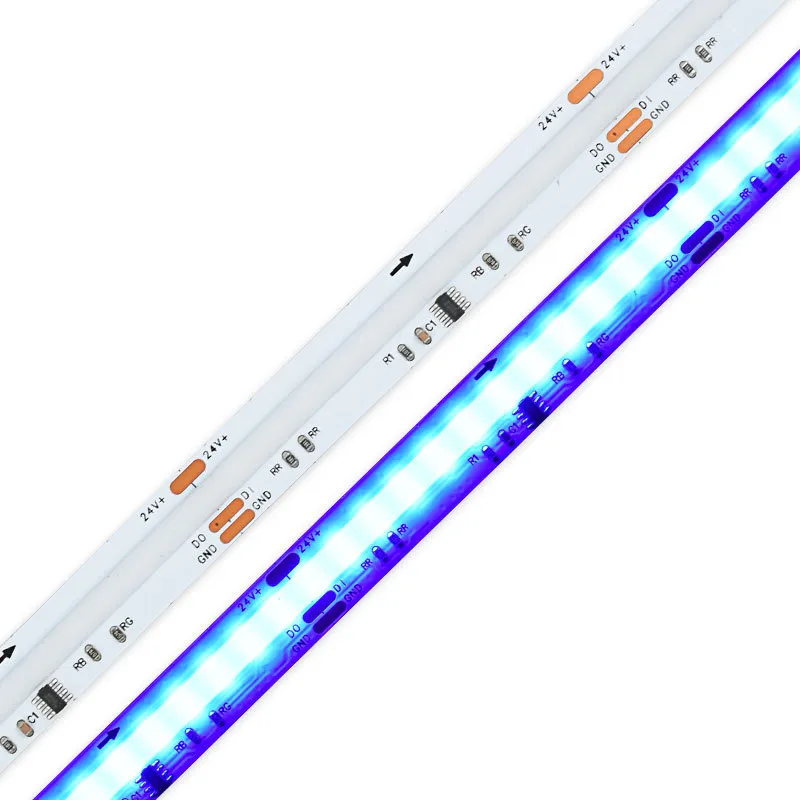

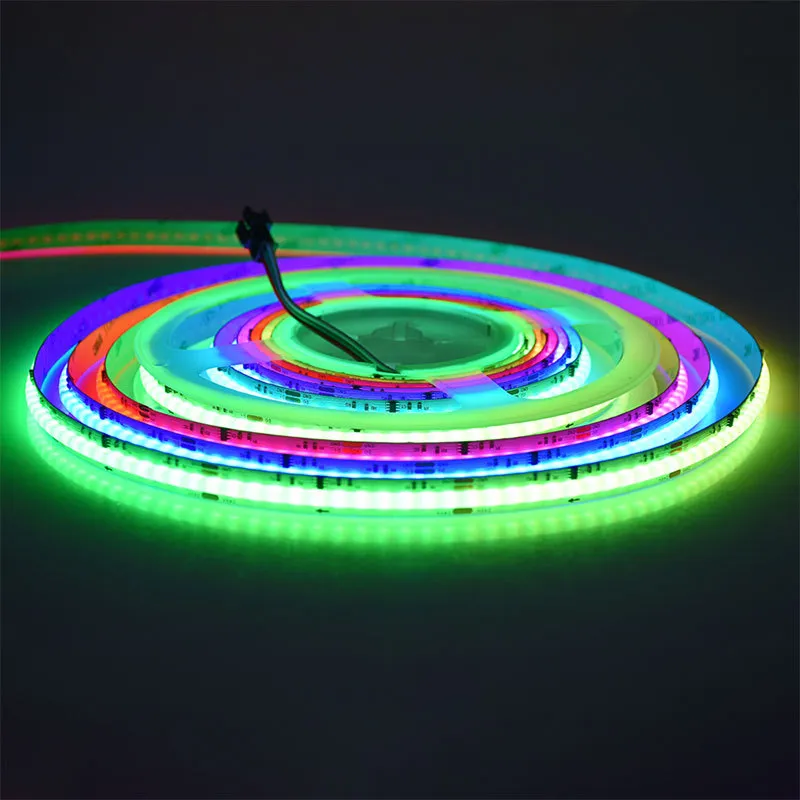

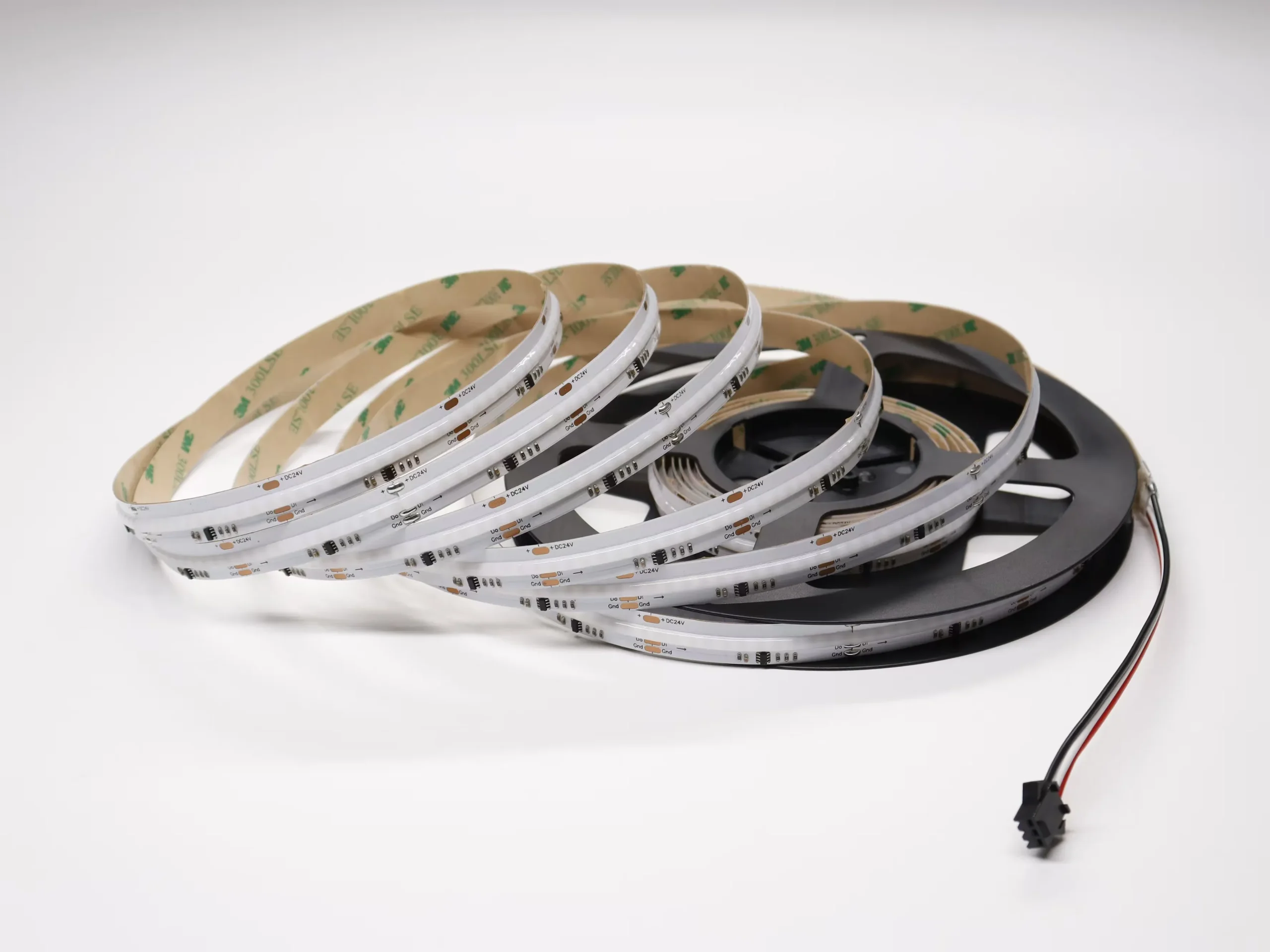

WS2811 RGB COB Dotless LED Strip
RGBW COB Dotless LED Strip
The RGBW COB LED Strip builds upon the RGB COB strip by adding a dedicated white LED channel, providing a true, pure white light (2700K–6500K) alongside the vibrant RGB colors. This ensures you can achieve purer white light, avoiding the mixed white light that results from RGB color blending.
Key Features:
RGBW Technology: Combines Red, Green, Blue, Warm white LEDs, allowing for rich, vibrant colors and a true white light for versatile lighting effects.
High Chip Density: COB (Chip-on-Board) technology ensures smooth, dotless illumination for a sleek and seamless lighting experience.
Pure White Light: Achieve clean, crisp white light (2700K to 6500K) for ambient or task lighting alongside dynamic color changes.
The RGBW COB Dotless LED Strip is ideal for creating elegant lighting setups in home décor, architectural lighting, retail displays, or event decorations, where both color effects and high-quality white light are required.
RGBWW COB Dotless LED Strip
WS2814 RGBW COB Dotless LED Strip

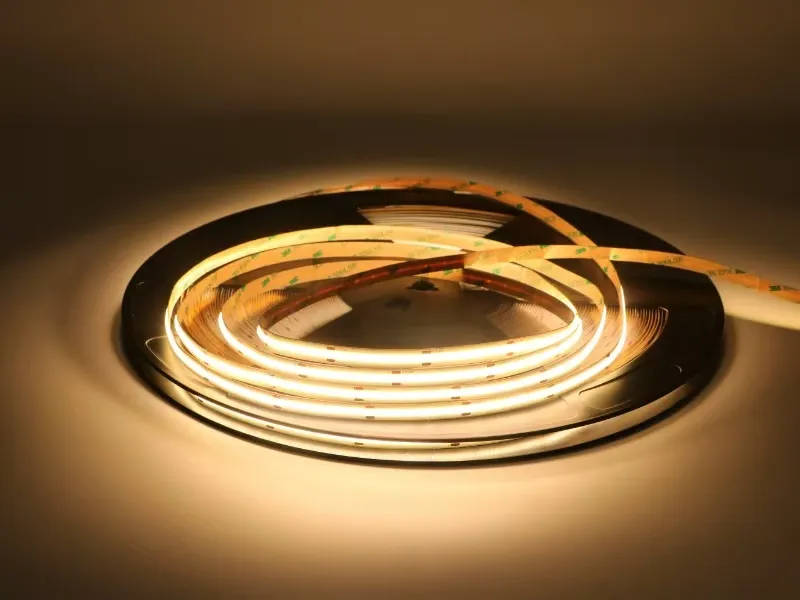

The 48V COB Dotless LED Strip is a high-performance lighting solution designed for long runs and durable, high-quality illumination. With a 3oz double-layer PCB, it offers 10W per meter of power, providing bright, uniform light with no visible dots. This strip boasts an impressive CRI90, ensuring accurate color rendering for a more natural and vibrant lighting experience.
Key Features:
Power and Efficiency: 10W/m with 48V power, offering energy-efficient and bright illumination for various applications.
High-Quality Construction: 3oz double-layer PCB ensures better heat dissipation and longevity.
Long Run: Can run up to 15 meters in a single continuous length without voltage drop, perfect for larger installations.
Longevity and Durability: Passes LM80 testing and boasts a 50,000-hour lifetime, with a 5-year warranty for peace of mind.
Waterproof: Manufactured using a silicone one-piece extrusion process, offering IP52, IP65, or IP67 waterproof ratings for versatile indoor and outdoor use.
CRI90: High Color Rendering Index (CRI) for natural, vivid light that accurately represents colors.
This 48V COB Dotless LED Strip is ideal for architectural lighting, signage, retail displays, and other large-scale projects that require consistent, high-quality lighting with minimal voltage drop over long distances.

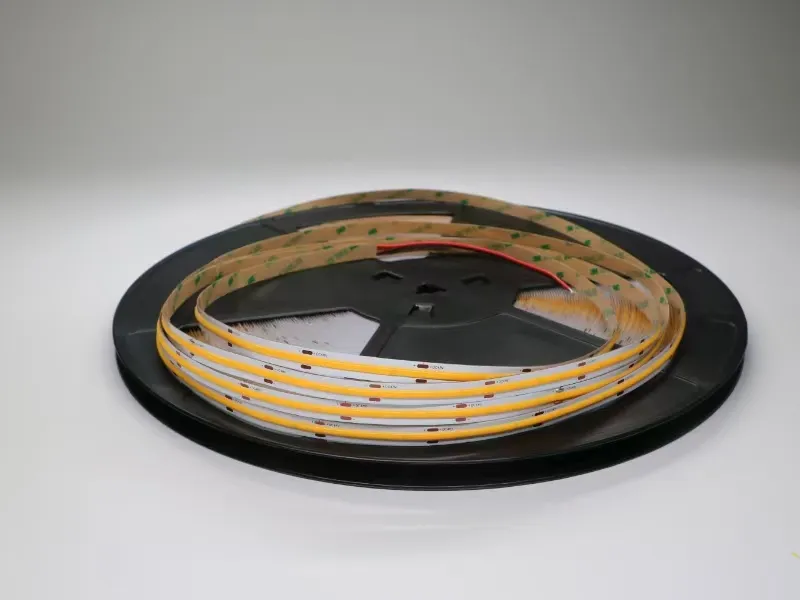

48V COB Dotless LED Strip
Specification Download
Product Video
Custom COB LED Strip Lighting
We offer full flexibility in the width, height, and thickness of our COB LED strips. Whether you need ultra-narrow strips for tight spaces or thicker builds for robust applications, we can manufacture to your specifications.
✔ Available in multiple sizes
✔ Precision fit for unique designs and enclosures
MSHLED can go beyond traditional strip formats. We can create COB LED designs in:
Straight strips
Circles
Triangles
Panels
Custom geometric shapes
✔ Just send us your design — we’ll bring it to life.
While our standard roll length is 5 meters, we can produce COB LED tape lights in custom lengths to match your project’s exact needs — whether it’s a short accent strip or a long architectural run.
✔ Available in 5m, 10m, and custom lengths
Choose from a wide range of lighting options:
Single-color: White, Red, Green, Blue, Pink, Yellow
Tunable White
RGB, RGBW
Addressable (Digital) COB strips
We offer COB LED strips with CRI up to Ra95, ensuring accurate color rendering for applications where lighting quality matters — such as photography, retail, or interior design.
✔ True-to-life color output
✔ Ideal for high-end environments
Match the voltage to your power system. We support a wide range of voltages:
5V, 12V, 24V, 48V, 110V,220V and more.
✔ Safe and efficient for low-voltage or long-distance runs
We tailor the power rating and LED density to suit your needs — from soft accent lighting to high-brightness functional lighting.
✔ Adjustable brightness and energy usage
✔ Suitable for under-cabinet, cove, or industrial lighting
Our COB LED strips are carefully packed to ensure they arrive in perfect condition. Options include:
5m, 10m,15m, 30m per roll
Anti-static bags or protective boxes
✔ Secure, damage-free delivery
✔ Bulk and retail packaging available
Product Testing
To ensure the products are 100% perfect without problem, all our products have passed below severe tests. So you can rest assured to wholesale our LED strips.
MSHLED IES Laboratory
MSHLED salt spray chamber
MSHLED vibration test
MSHLED arm drop test machine
MSHLED temphumi test chamber
MSHLED optical image coordinate measuring instrument
MSHLED ipx8 waterproof pressure testing machine
MSHLED ipx3 6 integrated waterproof test chamber
MSHLED LED Light integrating sphere
FAQ
Yes, we can provide free samples for testing. However, you will need to cover the shipping cost.
For our regular models, there is no MOQ.
For custom PCB designs, the MOQ is 1,000 meters.
If raw materials are in stock, delivery time is 8–10 days.
If materials need to be ordered, delivery time is 18–20 days.
We typically ship via DHL, UPS, or FedEx.
Delivery time is usually 3–5 days, depending on your location.
Each 5-meter strip is wound on a plastic reel and then sealed in an anti-static aluminum foil bag for safe transport.
Yes.
For small orders, we can print your logo using our in-house PCB printer.
For large orders, our PCB supplier can pre-print your logo during manufacturing.
Yes, all our COB LED strips are dimmable when used with a compatible dimming controller.
Yes, COB LED strips can be cut at marked points, indicated by a scissors icon and black line on the PCB.
Our COB LED strips have a lifespan of over 50,000 hours with proper use and installation.
SMD (Surface Mounted Device) uses individual LED beads placed on the surface.
COB (Chip On Board) mounts multiple chips directly onto the PCB, creating a more uniform light output with reduced glare and higher efficiency.
Yes, using an aluminum profile is recommended to enhance heat dissipation and extend the strip’s lifespan.
Absolutely! COB LED strips are perfect for accent lighting applications, as they provide a continuous, uniform light with no visible gaps between LEDs. Whether you’re highlighting architectural features, creating mood lighting in a living room, or illuminating countertops or shelves, COB LED strips deliver exceptional light quality for all accent lighting needs.
Yes, COB LED strip lights are highly energy-efficient compared to traditional lighting solutions. COB LED technology provides more lumens per watt, meaning they consume less energy while delivering higher brightness levels. This makes COB LED strips an excellent choice for energy-saving lighting solutions in both residential and commercial applications.
Most COB LED strips require an external LED power supply to provide the appropriate voltage. You can choose from options such as 12V, 24V, or 48V depending on your project’s requirements. Be sure to select the right power supply to avoid overloading or under-powering your COB LED strips.
Yes, COB LED strips can be cut at the designated cutting points, typically marked with a black line or a scissor symbol on the strip. This allows you to customize the length of your COB LED tape lights for DIY lighting projects, under-cabinet lighting, or custom installations.
Our COB LED strip lights come in a wide range of color temperatures to suit various lighting needs. You can choose from warm white (2700K) for a cozy ambiance, neutral white (4000K) for balanced lighting, and cool white (6500K) for bright, daylight-like lighting. We also offer RGB COB LED strips and tunable white COB strips for versatile lighting effects in commercial or residential spaces.

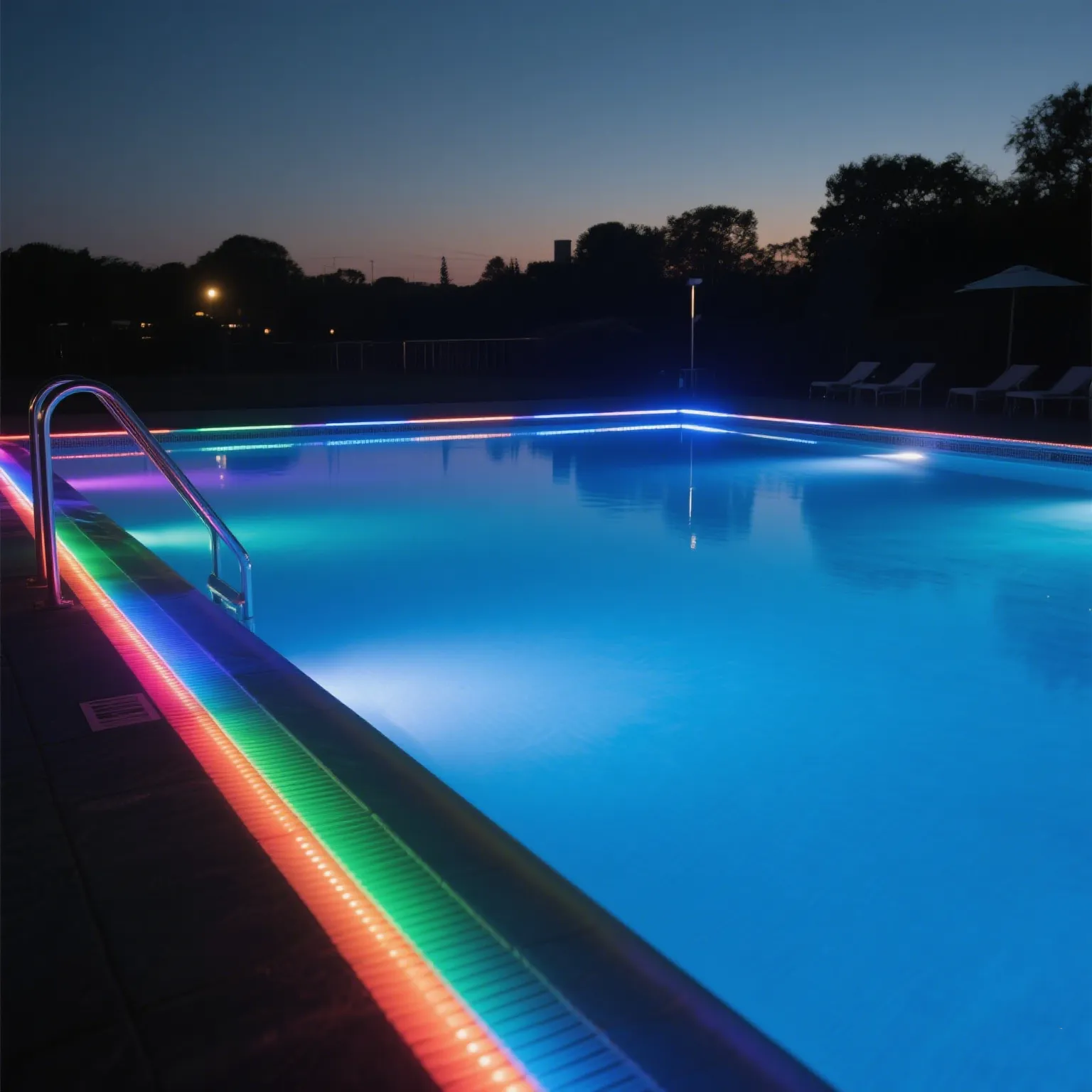

Yes, COB LED strip lights can be used for outdoor lighting applications, provided they are equipped with an appropriate IP rating (e.g., IP65, IP67, IP68). These ratings ensure the COB LED strip is waterproof and weatherproof, making it ideal for outdoor LED lighting, garden lighting, or landscape lighting.
