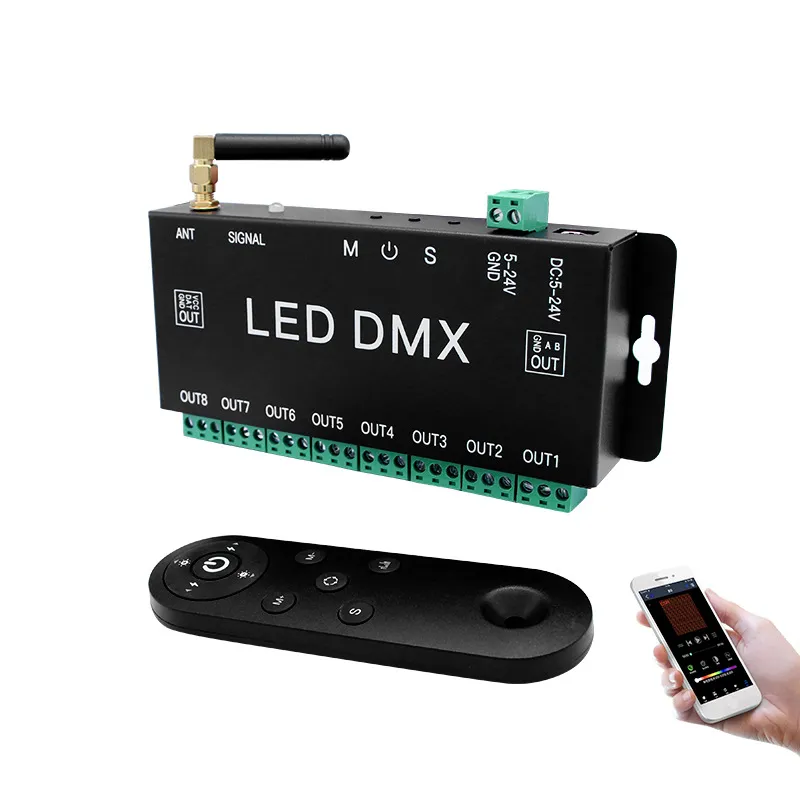

The Bluetooth 8-Channel Digital LED Controller is a versatile and powerful device designed to manage large-scale LED lighting projects, such as addressable LED strip lighting and digital LED matrix screen displays. It supports both SPI/TTL and DMX512 signal outputs, making it ideal for a wide range of lighting setups. With the ability to control up to 8 channels simultaneously, this controller ensures synchronized color effects across multiple LED strips, providing a cohesive and professional lighting experience.

Thank you for reading this post, don't forget to subscribe!

CON-spi &dmx-8ch cotnroller -MSHLED

---

• 8-Channel Output:
  • Controls up to 8 independent channels at once.
  • Each channel supports:
    • 1024 pixels for SPI/TTL signals.
    • 200 DMX ICs for DMX512 signals.
  • Output ports include:
    • GND DAT VCC for SPI/TTL LED strips.
    • GND A B for DMX LED strips.
• Signal Compatibility:
  • Supports SPI and TTL signals for addressable LED strips.
  • Supports DMX512 (UCS512) signals for professional lighting applications.
• Wireless Control:
  • Bluetooth 4.0: Allows remote control via the “LED DMX” app on Android 4.4+ or iOS 11.0+ devices.
  • RF Remote Control: Offers functions like on/off, brightness, speed, mode, effect loop, static color, and music synchronization.
• App-Based Programming:
  • Customize light color, mode, and timing.
  • Set RGB order, pixel count, and zone-specific effects.
  • Enable music synchronization with voice-activated mode or phone music.
• On-Device Controls:

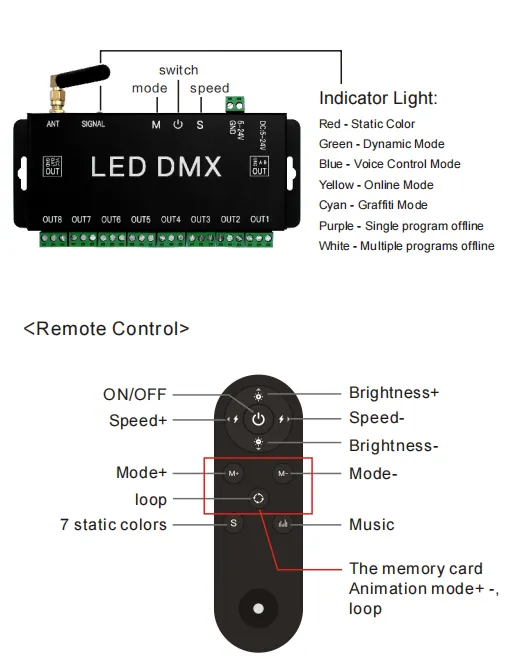

  • Three simple buttons for adjusting the light switch, speed, and mode directly on the controller.
• Music Rhythm Synchronization:
  • LED lights can change in sync with music, creating dynamic and immersive lighting effects.
• Documentation:
  • A PDF manual (CON-SPI/DMX-8CH) is available for detailed setup and usage instructions.

Technical Specifications

---



How to Use the Controller

A) Pairing with LED Lights via Bluetooth

1. Download the App:
   • Search for “LED DMX” in the App Store (iOS), Google Play (Android), or other major app stores, and install it.
2. Power On the LED Lights:
   • Connect your digital LED lights to the controller and power it on using a DC 5-24V power supply.
3. Enable Bluetooth:
   • Turn on Bluetooth on your phone.
4. Connect via the App:
   • Open the “LED DMX” app, scroll down, and refresh to search for nearby devices.
   • Select your controller from the list to access the light control interface.
5. Customize Settings:
   • Adjust RGB order, pixel count, timing, and color values.
   • Create custom lighting effects for specific zones of the strip.
   • Enable music synchronization (voice-activated or phone music).

B) Wi-Fi Password Setup (Optional)

• If your setup requires Wi-Fi control:
  1. Power on the controller.
  2. Enable both Bluetooth and Wi-Fi on your phone.
  3. Open the “LED DMX” app and select the Wi-Fi device option.
  4. Press and hold the “S” and “M” buttons on the controller together.
  5. Enter a password in the app:
     • Default factory password: A1234567.
     • For resets, use a combination of English letters and numbers.
  6. Confirmation: The lights will flash white three times, indicating a successful password setup.

---

Why Choose This Controller?

The Bluetooth 8-Channel LED Controller stands out for several reasons:

• Versatility: Supports both SPI/TTL and DMX512 signals, making it compatible with a wide range of LED lighting systems.
• Synchronization: Controls up to 8 channels simultaneously, ensuring consistent color effects across multiple strips or displays.
• Ease of Use: Offers multiple control options—Bluetooth app, RF remote, and on-device buttons—for maximum flexibility.
• Creative Control: Allows for detailed customization, including music-reactive lighting and zone-specific effects, perfect for dynamic displays or events.

This controller is an excellent choice for anyone looking to manage complex LED lighting projects with precision and ease.

---

Additional Notes

• IP Rating: The controller has an IP20 rating, meaning it is not waterproof and should be used in dry environments.
• Working Temperature: Operates effectively between -10℃ and 60℃, ensuring reliability in various conditions.
• Power Supply: Requires a DC 5-24V input, so ensure your power source matches the voltage of your LED strips.
